Load Cells

Load Cells
Load Cells

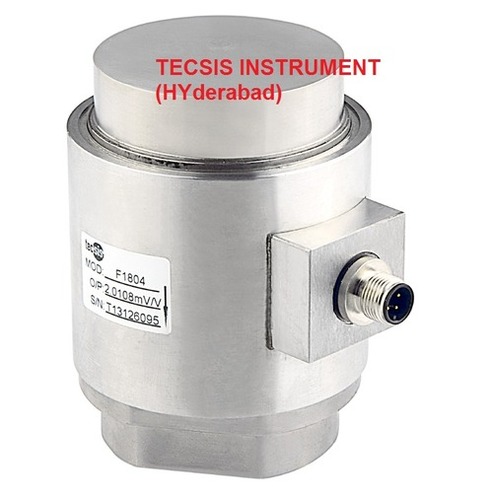

Product Code : F1804
Brand Name : TECSIS
Product Description
Features & Applications
Load Direction
• Easy to install
• Alloy steel, laser-welded, IP67
• Dual spherical surface
• Mainly used for truck scale, ground scale,
tank and other industrial on board weighing
Technical Parameters systems
Capacity Material Weight

5/10/20/30/40/50t Alloy steel 4.3kg

Specifications Technique

Rated output
  • 2.0±1%mV/V
  • 3.0±1%mV/V (Option)
  • Zero balance ±1% F.S.
  • Non-linearity 0.05% F.S.
  • Hysteresis 0.05% F.S.
  • Repeatability 0.05% F.S.
  • Creep (30min) 0.05% F.S.
  • Temp. effect on output 0.03% F.S. / 10ºC
  • Temp. effect on zero 0.03% F.S. / 10ºC
  • Input impedance 385±10Ω
  • Output impedance 350±5Ω
  • Insulation ≥5000MΩ / 100VDC
  • Recommended excitation 10V
  • Maximum excitation 15V
  • Compensated temp. range - 10~60ºC
  • Operation temp. range - 20~80ºC
  • Safe overload 150% F.S.
  • Ultimate overload 200% F.S.
  • Cable size M12×1-5P
  • Protection class IP67
